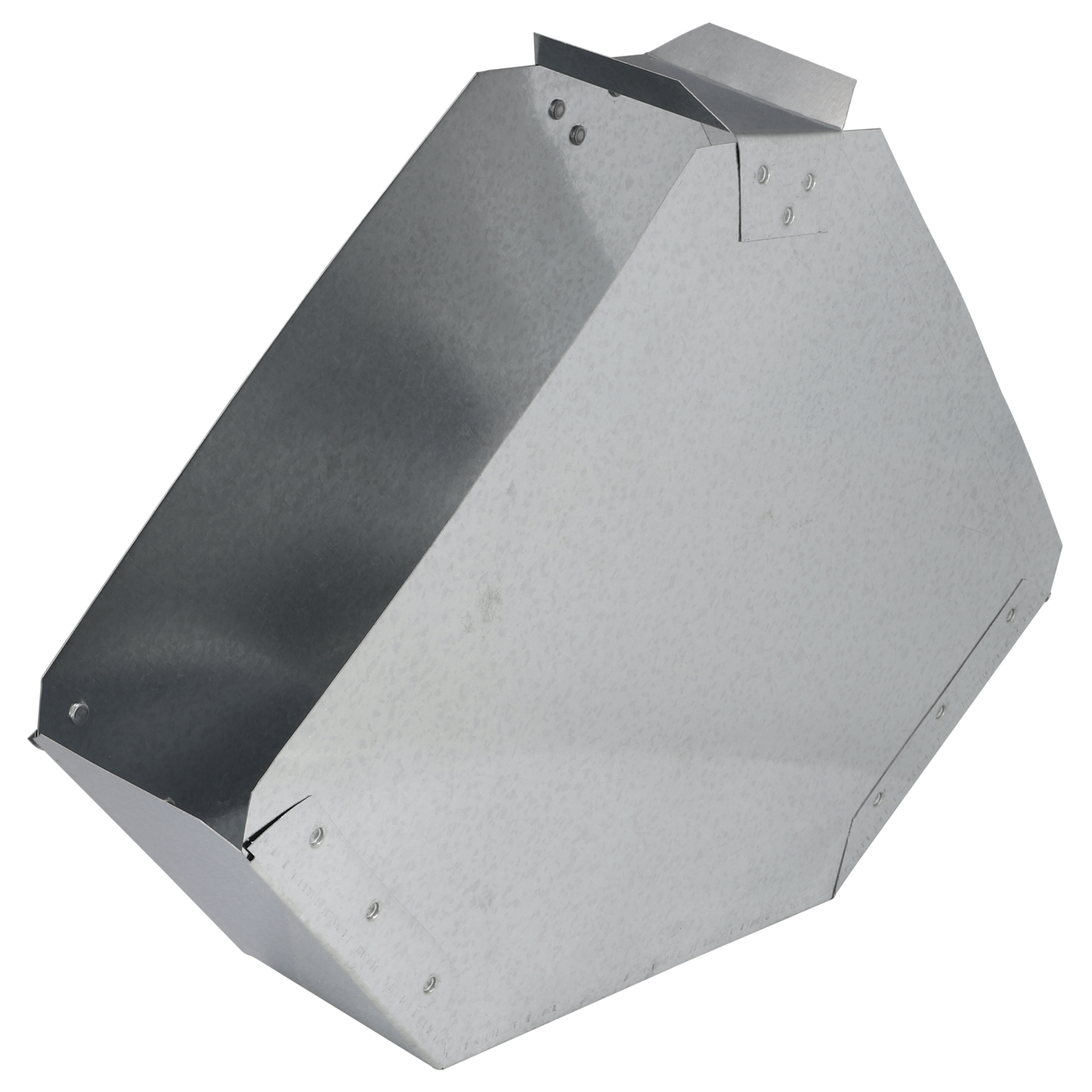

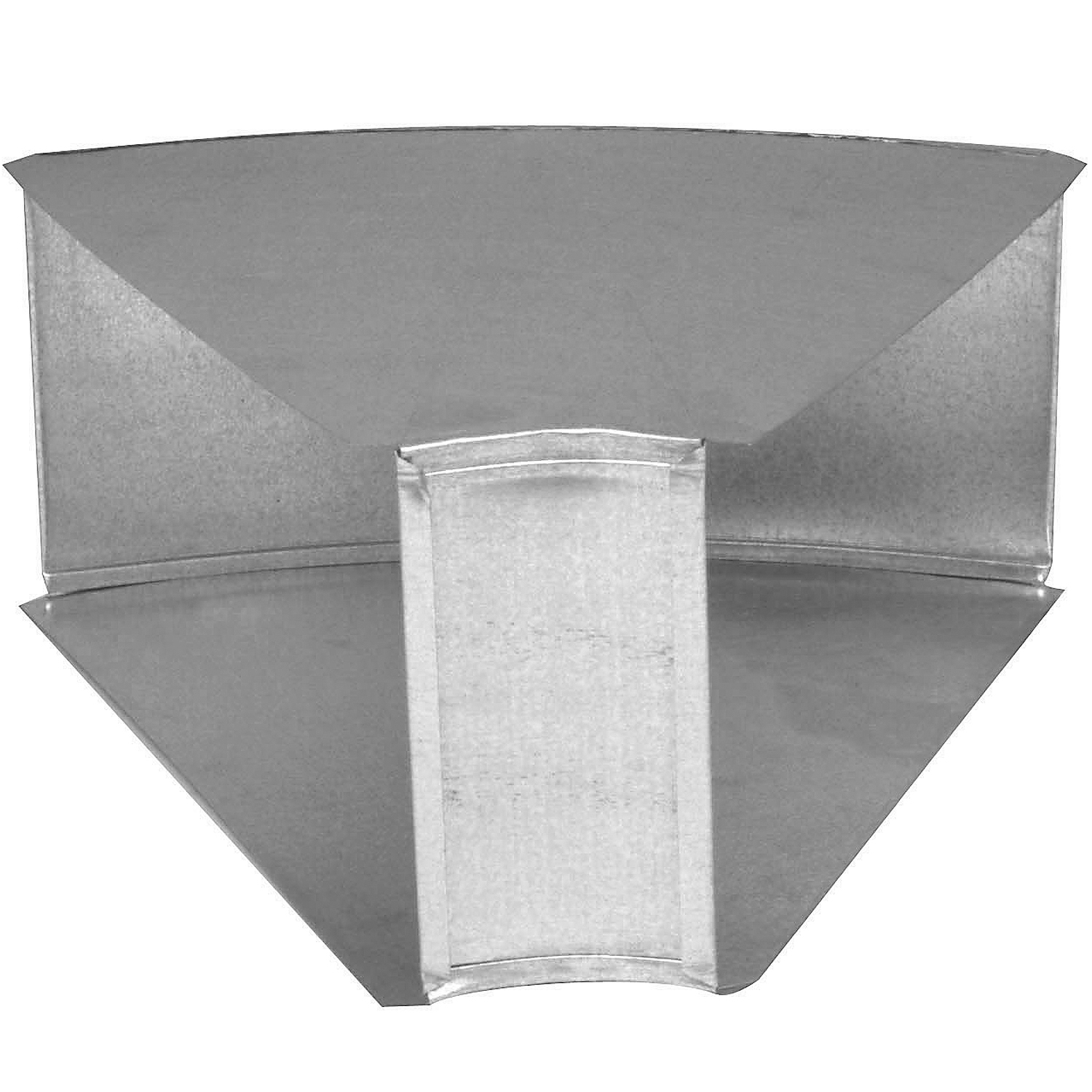

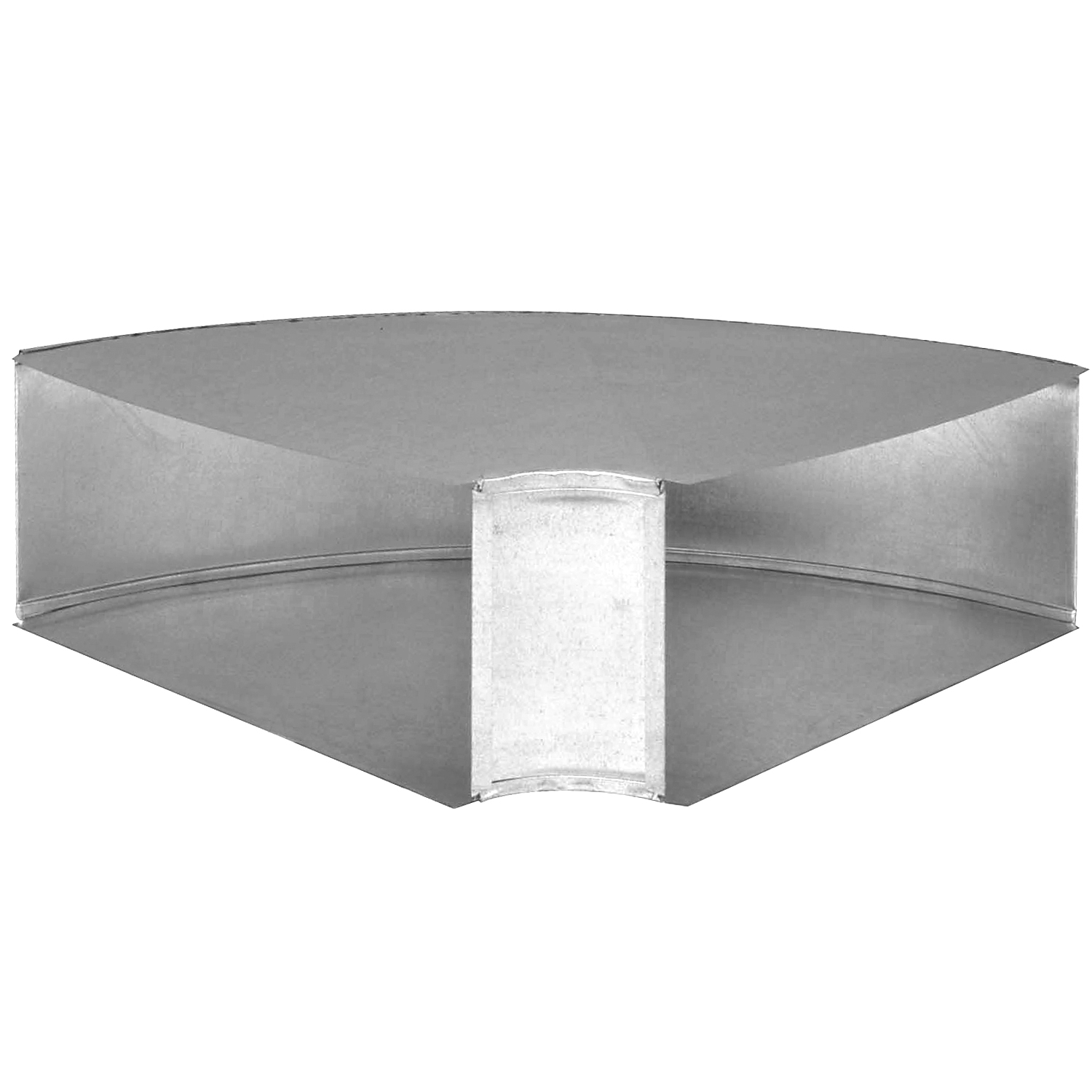

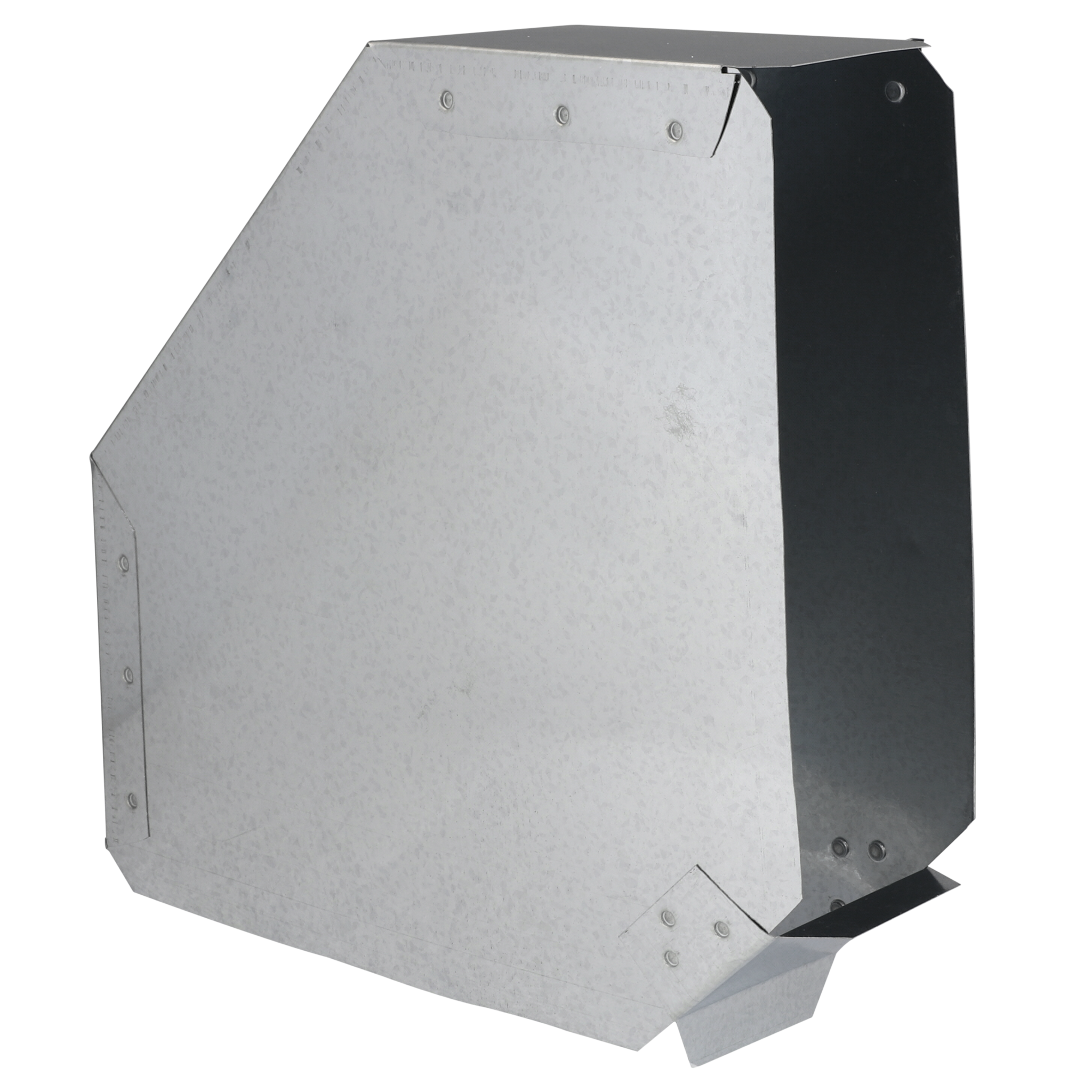

Side Elbow 45° & 90°

  • Used to change the vertical direction of
    two sections of rectangular stack duct.
  • Fixed at 90° or 45° angle.

Side Elbow 45° & 90°
Side Elbow 45° & 90°
Side Elbow 45° & 90°
Side Elbow 45° & 90°
Side Elbow 45° & 90°
Side Elbow 45° & 90°

Product Documents

GV0104 8in x 24in 90deg Side Elbow GV0103 8in x 22in 90deg Side Elbow GV0102 8in x 20in 90deg Side Elbow GV0101 8in x 18in 90deg Side Elbow GV0100 8in x 16in 90deg Side Elbow GV0099 8in x 14in 90deg Side Elbow GV0098 8in x 12in 90deg Side Elbow GV0097 8in x 10in 90deg Side Elbow GV0096 8in x 8in 90deg Side Elbow
GV0092 3 25x10 GV Side Elbow 90deg GV0080 3 25in x 10in 45deg Side Elbow GV0082 8in x 8in 45deg Side Elbow GV0083 8in x 10in 45deg Side Elbow GV0084 8in x 12in 45deg Side Elbow GV0085 8in x 14in 45deg Side Elbow GV0086 8in x 16in 45deg Side Elbow GV0087 8in x 18in 45deg Side Elbow GV0088 8in x 20in 45deg Side Elbow
GV0090 8in x 24in 45deg Side Elbow

Specifications

3- 1/4"

Item No.Description
GV00923-1/4" x 10" - 90° Side Elbow 30ga
View All

8"

Item No.Description
GV00968" x 8"- 90° Side Elbow 30ga
GV00978" x 10"- 90° Side Elbow 30ga
GV00988" x 12"- 90° Side Elbow 30ga
GV00998" x 14"- 90° Side Elbow 30ga
GV01008" x 16"- 90° Side Elbow 30ga
GV01018" x 18"- 90° Side Elbow 30ga
GV01028" x 20"- 90° Side Elbow 30ga
GV01038" x 22"- 90° Side Elbow 30ga
GV01048" x 24"- 90° Side Elbow 30ga

3-1/4"

Item No.Description
GV00803-1/4" x 10" Side Elbow 30ga

8"

Item No.Description
GV00828" x 8"-45° Side Elbow 30ga
GV00838" x 10"-45° Side Elbow 30ga
GV00848" x 12"-45° Side Elbow 30ga
GV00858" x 14"-45° Side Elbow 30ga
GV00868" x 16"-45° Side Elbow 30ga
GV00878" x 18"-45° Side Elbow 30ga
GV00888" x 20"-45° Side Elbow 30ga
GV00908" x 24"-45° Side Elbow 30ga
